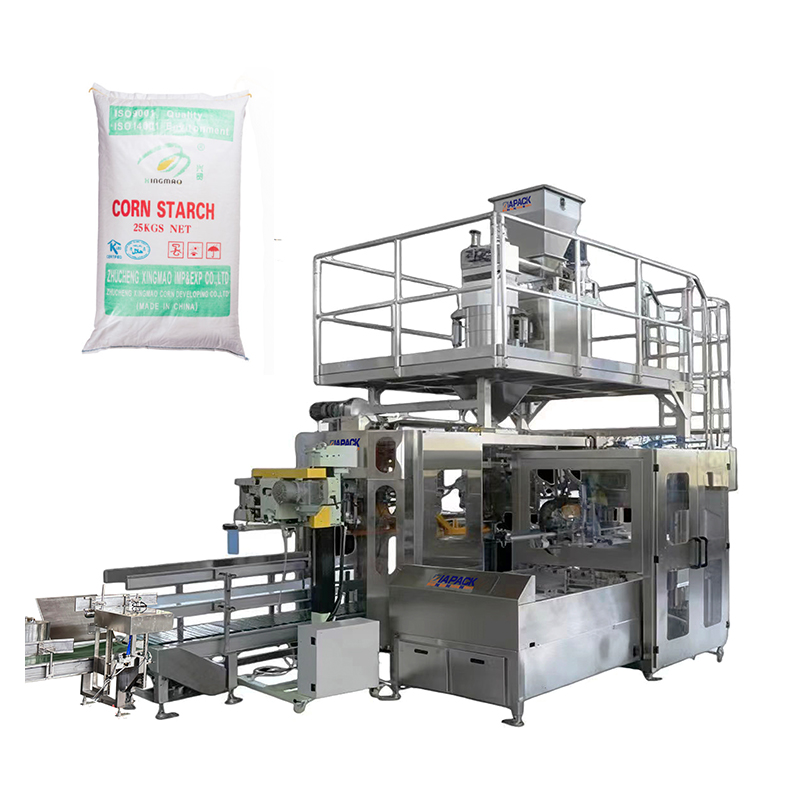

25KG 50KG Starch Powder Automatic Bagging Machine

主な特徴

Automatic weighing, automatic bag loading, automatic bag sewing, no manual operation is required;           Touch screen interface, simple and intuitive operation; The unit is composed of bag preparation warehouse, bag taking and bag handling device, bag loading manipulator, bag clamping and unloading device, bag holding pushing device, bag opening guiding device, vacuum system and control system;It has a wide adaptability to the packaging bag. The packaging machine adopts the bag picking method, that is, taking the bag from the bag storage, centering the bag, sending the bag forward, positioning the bag mouth, pre opening the bag, inserting the knife of the bag loading manipulator into the bag opening, and clamping the two sides of the bag mouth with air gripper on both sides, and finally loading the bag. This kind of bag loading method does not have high requirements on the size error of the bag manufacturing and the quality of the bag itself Low bag making cost; Compared with the pneumatic manipulator, the servo motor has the advantages of fast speed, smooth bag loading, no impact and long service life;

袋クランプ装置の開位置には2つのマイクロスイッチが設置されており、袋口が完全にクランプされているかどうか、また袋開口部が完全に開いているかどうかを検出します。これにより、包装機の誤判断や材料の地面への流出を防ぎ、包装機の使用効率と現場の作業環境を向上させます。

ソレノイドバルブおよびその他の空気圧コンポーネントは密閉設計であり、露出した設置ではなく、粉塵環境でも使用できるため、機器の長寿命が保証されます。

 技術的パラメータ
