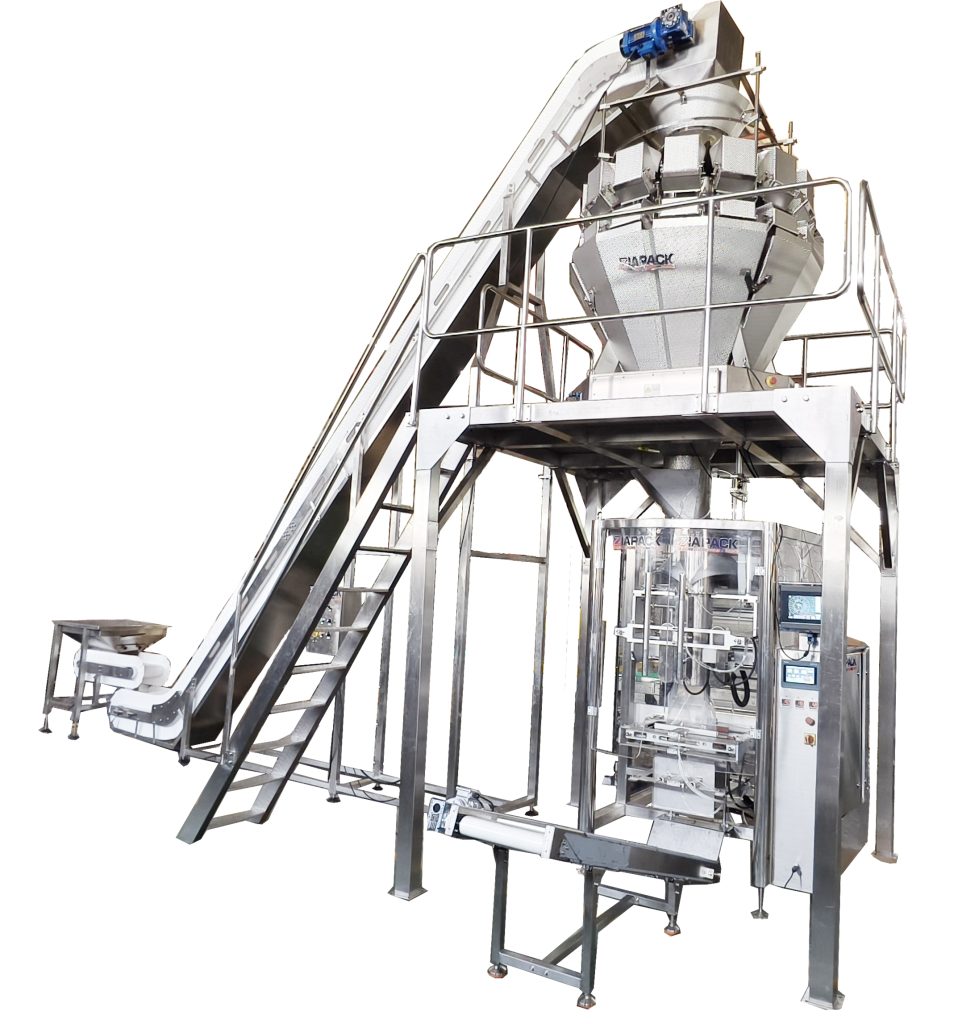

This unit machine is special design for packaging various vegetable like White radish, cucumber, lettuce, cabbage in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .
応用:

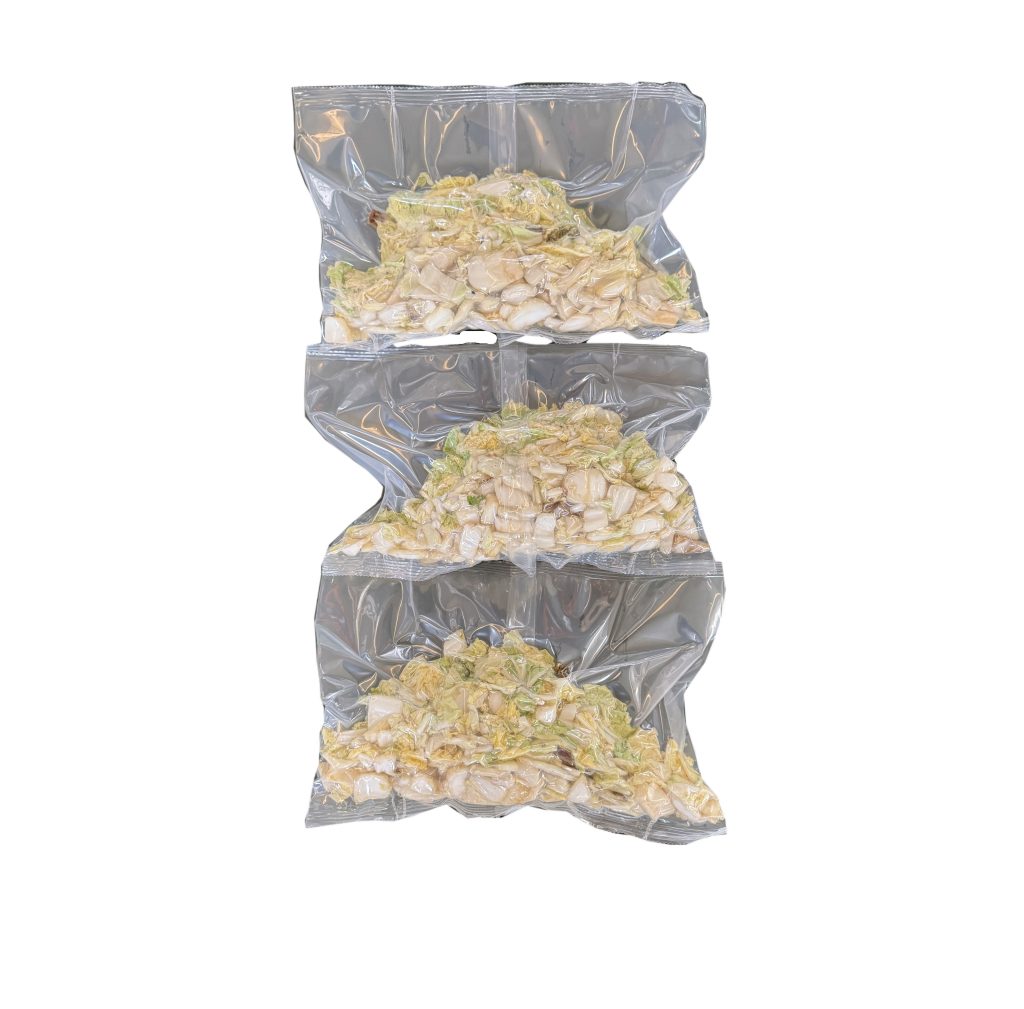

It is suitable for quantitative weighing of large target weight or large volume materials such as vegetable salad, fruit salad, potatoes, onions, tomatoes, cherry tomatoes and other vegetables and fruits.
特徴:
- 高精度、高水準の特殊ロードセル。
- プログラム回復機能により操作エラーを削減し、マルチセグメント重量キャリブレーションをサポートします。
- 自動一時停止機能により計量安定性と精度が向上する製品はありません。
- 線形振幅は独立して調整でき、給餌をより均一にすることができます。
- 世界市場向けに 15 の言語が利用可能です。
- 100 個のプログラム容量により、さまざまな計量要件を満たすことができ、タッチ スクリーンのユーザー フレンドリーなヘルプ メニューにより操作が簡単になります。
序章 :
このマシンは、袋作り、充填、シール、印刷、切断などの機能を自動的に実現できます。このマシンは、バッグ形成の充填とシールに自動的に到達できます。
この包装機は、フィルム送り用にインポートサーボモーターを採用し、マンマシンインターフェースは高度なタッチスクリーンを使用しています。操作はより簡単で便利です。すべてのコンポーネントは国際的に有名なブランドを採用しており、PLC は SIEMENS、サーボ モーターは PANASONIC、タッチ スクリーンは SIEMENS、シリンダーとエア バルブは SMC です。材料と接触する部品、コントロール キャビネット、メイン フレームはステンレス鋼 304 から成っています
技術的パラメータ:
| モデル | ZL780 |
| Forming bag type | Pillow bag/gusseted bag |
| バッグの長さ | 150-480mm by secondary film pulling the bag length can be longer |
| バッグの幅 | 120-375mm(Side width +front width ) |
| フィルム幅 | ≤780mm |
| Bag forming speed | 5-15bag/min |
| Air source consumption | 0.8MPa 0.45m3/min |
| Max outer diameter of reel | ¢400mm |
| Core inner dia | ¢75mm |
| 力 | 6KW 380V±10% 50Hz |
| マシンサイズ | 1650*1500*1750mm |
| 機械重量 | 650kg |
